Best Tips About Is A 1k Resistor 1000 Ohms

Unlocking the Secret

1. What's the Deal with Resistors and Their Values?

Alright, let's dive into the electrifying world of electronics! We're tackling a question that might seem straightforward, but it's crucial for anyone tinkering with circuits: Is a 1k resistor actually 1000 ohms? The short, sweet, and shocking answer is: Yes! But, like most things in life, there's a little nuance to explore. Think of it like ordering a pizza; you expect it to be round, cheesy, and delicious, but sometimes you get extra toppings (or a slightly wonky crust). Its the same with resistors, more or less.

Resistors, those little components that look like tiny colored barrels, control the flow of electricity in a circuit. They provide resistance, measured in ohms (), which dictates how much current can pass through. A 1k resistor is designed to offer 1000 ohms of resistance. The 'k' stands for kilo, which means thousand. So, 1k = 1000. Easy peasy, right?

Now, before you start building your next robot army, it's worth noting that resistors aren't perfect. They have tolerance, which means their actual resistance can vary slightly from the stated value. This tolerance is usually expressed as a percentage, indicated by a color band on the resistor. A gold band typically means a 5% tolerance. So, a 1k resistor with a 5% tolerance could realistically be anywhere between 950 ohms and 1050 ohms. Don't worry, it's usually not a big deal, unless you're building a super-precise, top-secret, doomsday device (in which case, maybe double-check your resistor values).

Think of it like this: if you're expecting 1000 paperclips and get 970, or even 1030, you can still clip those papers just fine. So while knowing the tolerance is important, usually you're good to go with the stated 1k value!

Decoding the Color Code

2. The Rainbow Connection

Okay, you know a 1k resistor should be around 1000 ohms, but how do you know it's a 1k resistor just by looking at it? That's where the color code comes in! It might seem like a secret language from a spy movie, but it's actually a pretty straightforward system. Resistors have colored bands that tell you their resistance value and tolerance. Each color represents a number.

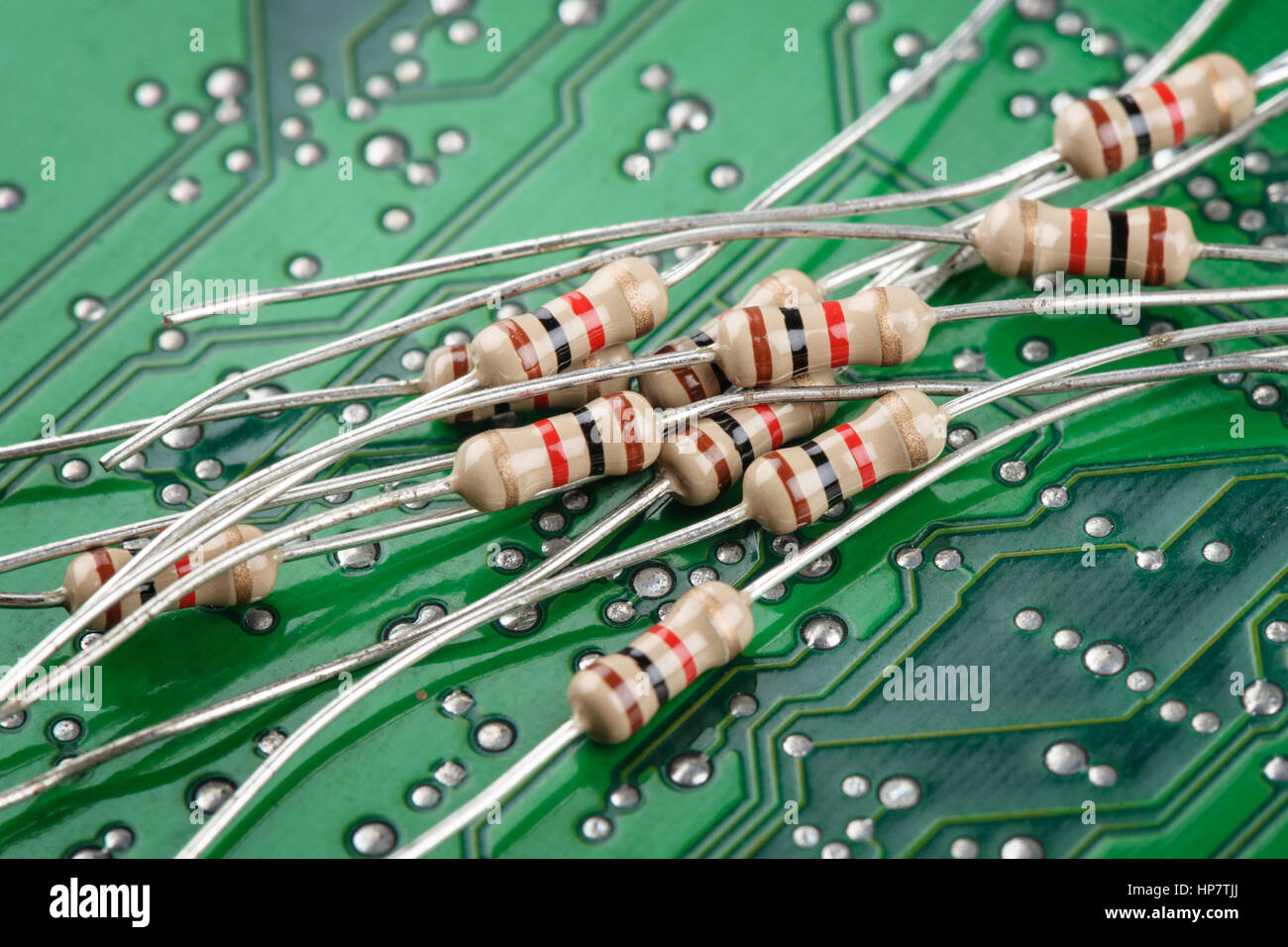

Let's break it down. The first two bands represent the first two digits of the resistance value. The third band is the multiplier, indicating the power of 10 by which to multiply the first two digits. And the fourth band (if present) represents the tolerance. For a 1k resistor (1000 ohms), the color code is typically Brown, Black, Red, and often Gold (for 5% tolerance). Brown is 1, Black is 0, Red is 10^2 (which is 100), so you have 10 x 100 = 1000 ohms!

There are tons of handy charts and calculators online that can help you decode resistor color codes if you get stuck. It might seem daunting at first, but with a little practice, you'll be reading resistor values like a pro! Think of it as learning a new superpower that will save you from the frustrating world of mislabeled components. Or at least prevent you from accidentally setting your breadboard on fire (always a plus!).

So, grab a resistor, find a color code chart, and start practicing! It's a skill that will definitely come in handy on your electronic adventures. Plus, you'll be able to impress your friends with your newfound knowledge of resistor wizardry. "Oh, this old thing? Just a 4.7k resistor with a 1% tolerance. No biggie."

Why 1k Resistors Are So Popular

3. The Ubiquitous 1k

Ever noticed how the 1k resistor seems to pop up in nearly every electronics project? There's a reason for that! The 1k resistor is a versatile and widely used component. It's a good compromise between limiting current and not adding too much resistance to a circuit. It's like the Goldilocks of resistors — not too high, not too low, just right.

One common application is as a pull-up or pull-down resistor. These resistors are used to ensure a digital input pin on a microcontroller has a defined state (either high or low) when no signal is present. Without a pull-up or pull-down resistor, the input pin could float, leading to unpredictable behavior. A 1k resistor is often a good choice for this because it provides enough current to define the state without drawing too much power.

Another popular use for 1k resistors is in current-limiting applications, such as protecting LEDs. LEDs need a current-limiting resistor to prevent them from burning out. A 1k resistor can be a good starting point for many common LEDs, although the exact value depends on the LED's forward voltage and desired current. It's always a good idea to calculate the appropriate resistor value to ensure your LED has a long and happy life.

Beyond pull-up/pull-down and LED current limiting, you will find 1k resistors in filter circuits, voltage dividers, and op-amp feedback networks. They are a truly useful component to have in your parts box! Think of it as that one perfect t-shirt that goes with everything. You'll probably reach for it more than anything else.

When Things Go Wrong

4. Oops! When Your Resistor Isn't Acting Right

Even the most reliable components can sometimes fail. Resistors are generally pretty sturdy, but they can be damaged by excessive heat, voltage, or current. So, what happens when your 1k resistor decides to call it quits? One of the most common signs of a failing resistor is a change in its resistance value. It might drift higher or lower than its rated value, or it might even open circuit (become completely non-conductive).

If you suspect a resistor is faulty, the first step is to check its resistance with a multimeter. A multimeter is an indispensable tool for any electronics enthusiast. Set the multimeter to the ohms setting and measure the resistance across the resistor's leads. If the reading is significantly different from 1000 ohms, or if the multimeter shows an open circuit, the resistor is likely bad.

Another sign of a failing resistor is physical damage, such as burning, cracking, or discoloration. These are usually telltale signs that the resistor has been subjected to excessive heat or voltage. If you see any physical damage, it's best to replace the resistor immediately. It's kind of like when your car starts smoking; it's usually not a good sign, and it's best to get it checked out (or in this case, replaced).

Remember that tolerance we talked about? Sometimes a resistor seems faulty, but it's actually within its tolerance range. So, before you declare a resistor dead, double-check its tolerance. If it's within the acceptable range, the problem might lie elsewhere in your circuit.

FAQ

5. Everything You Wanted to Know (But Were Afraid to Ask)

Q: Can I use a resistor with a different tolerance than the one specified in my circuit diagram?

A: Usually, yes! A tighter tolerance (e.g., 1% instead of 5%) is almost always fine and might even improve performance. A wider tolerance might work, but it's best to check the circuit's requirements and ensure the wider range of possible resistance values won't cause problems.

Q: What happens if I use a resistor with too low a wattage rating?

A: Uh oh! This is a recipe for disaster! Resistors dissipate power as heat. If you use a resistor with a wattage rating lower than the power it needs to dissipate, it can overheat, burn out, and potentially damage other components in your circuit. Always choose a resistor with a wattage rating that's appropriate for the application. It's better to err on the side of caution and choose a higher wattage rating than necessary.

Q: Can I connect resistors in series or parallel to get a different resistance value?

A: Absolutely! Connecting resistors in series increases the total resistance, while connecting them in parallel decreases the total resistance. There are simple formulas for calculating the equivalent resistance of series and parallel combinations. This is a great way to achieve a specific resistance value when you don't have the exact value you need on hand. Its like mixing paint to make just the right colour.

Q: My 1k resistor looks a bit burnt. Is it still safe to use?

A: No! If your resistor looks burnt, it's best to replace it immediately. A burnt resistor has likely been damaged and may no longer have the correct resistance value. Plus, it could potentially be a fire hazard. Safety first!
